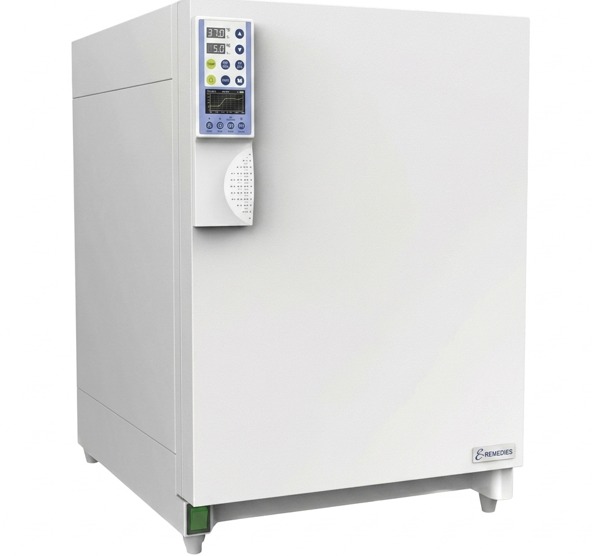

Co2 Incubator
Description
The CO2 Incubator is a precision-controlled embryology environmental chamber engineered to replicate optimal physiological growth conditions for human gametes and embryos. Featuring an advanced dual-beam NDIR gas sensor, fanless thermal uniformity, and an automated hot-air decontamination cycle, it provides a highly stable, contamination-free workspace for advanced IVF and ART laboratories.The CO2 Incubator represents the gold standard in laboratory environmental chambers, specifically designed to replicate precise physiological growth conditions for sensitive cellular structures. Outfitted with high-durability infrared (NDIR) gas sensors and direct heating element configurations, the incubator maintains completely uniform thermal distribution and gas density patterns.
Its primary clinical application is the stable in vitro cultivation and continuous, secure development of human gametes and embryos within a strict contamination-free workspace. To maximize clinical safety and maintain strict cleanroom compliance, this high-efficiency incubation system incorporates an automated high-temperature decontamination cycle that eliminates micro-organisms without needing to remove internal parts.
- Flexible Capacity Configurations
- Dual-Beam NDIR Sensor Technology
- Ultra-Tight Thermal Uniformity
- Automated Hot-Air Sterilization
- High Passive Humidity Delivery
- Seamless Cleanroom Construction
- Physiological Optimization: Meticulously engineered to replicate the exact in vivo conditions required for high-yield human gamete and embryo cultivation.
- Zero-Drift Sensor Accuracy: Uses a high-durability, continuous-drift dual-beam infrared (NDIR) sensor that guarantees uncompromised CO2 control.
- Unrivaled Contamination Defense: Features a built-in automated hot-air sterilization cycle, eliminating the need for manual autoclaving of internal components.
- Embryo-Safe Fanless Design: A direct-heat fanless matrix layout eliminates internal fans, drastically reducing vibration risk and preventing cellular disturbance or media desiccation.
- Premium Clinical Build: Constructed with a seamless, electro-polished medical-grade 304 stainless steel interior with rounded corners to stop bacterial harboring.
- Chamber Capacity: 160 Litres internal volume configuration
- Gas Sensor & Interface: TC/IR CO2 sensor paired with a soft-touch keypad configuration
- Safety Features: Out-door heating error warning, auto-start function, and inner safety glass door
- Air Filtration: Integrated HEPA filter specifically engineered for CO2 gas supply line purification

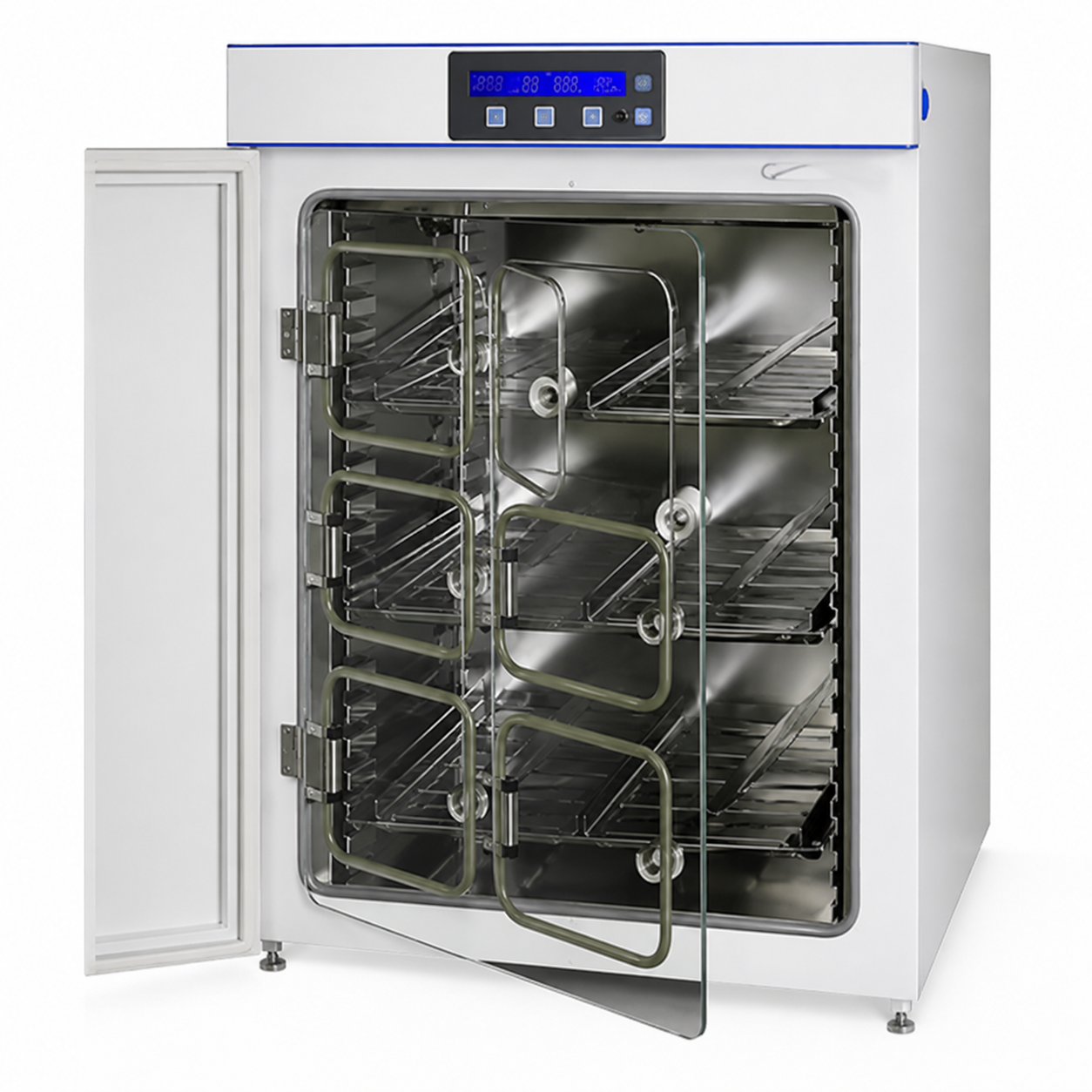

- Internal Screen Assemblies: Premium inner safety glass screen system consisting of 3 distinct pieces
- Temperature Regulation: Microprocessor PID temperature controller paired with a high-precision temperature sensor
- Thermal Range: Ambient temperature range from above 5°C up to 50°C (with a tight tolerance of ± 0.1°C at 37°C)
- Heating Setup: Advanced Air-Jacket direct heating element configuration system
- Chamber Disinfection: Dry or moist heating disinfection capabilities ranging from 90°C up to 120°C
- Sterilization Cycle Timeline: Automated total disinfection cycle duration lasting between 12 to 13 hours
- Interior Casing Architecture: Smooth inner casing structure featuring rounded corners on all sides constructed from stainless steel
- Shelving Configurations: Equipped with at least 3 high-durability internal sample storage shelves
- Regulatory Compliance Standards: Clinically verified and must be CE / US FDA / EU Certified for IVF laboratories
- Supplied Hardware Accessories: CO2 Incubator hardware unit must be supplied complete with its operational table
